The 710 Discriminating Personal TLD Dosimeter is used when the monitoring program requires radiation field discrimination or defined badge response for occupational monitoring. Configuration should be confirmed against the customer's monitoring protocol, detector arrangement and reader workflow before quotation.
Typical applications
- Occupational personal monitoring
- X/gamma radiation monitoring
- Hp(10), Hp(0.07) and photon field evaluation
- Accident-dose assessment workflows where the badge configuration is confirmed by protocol

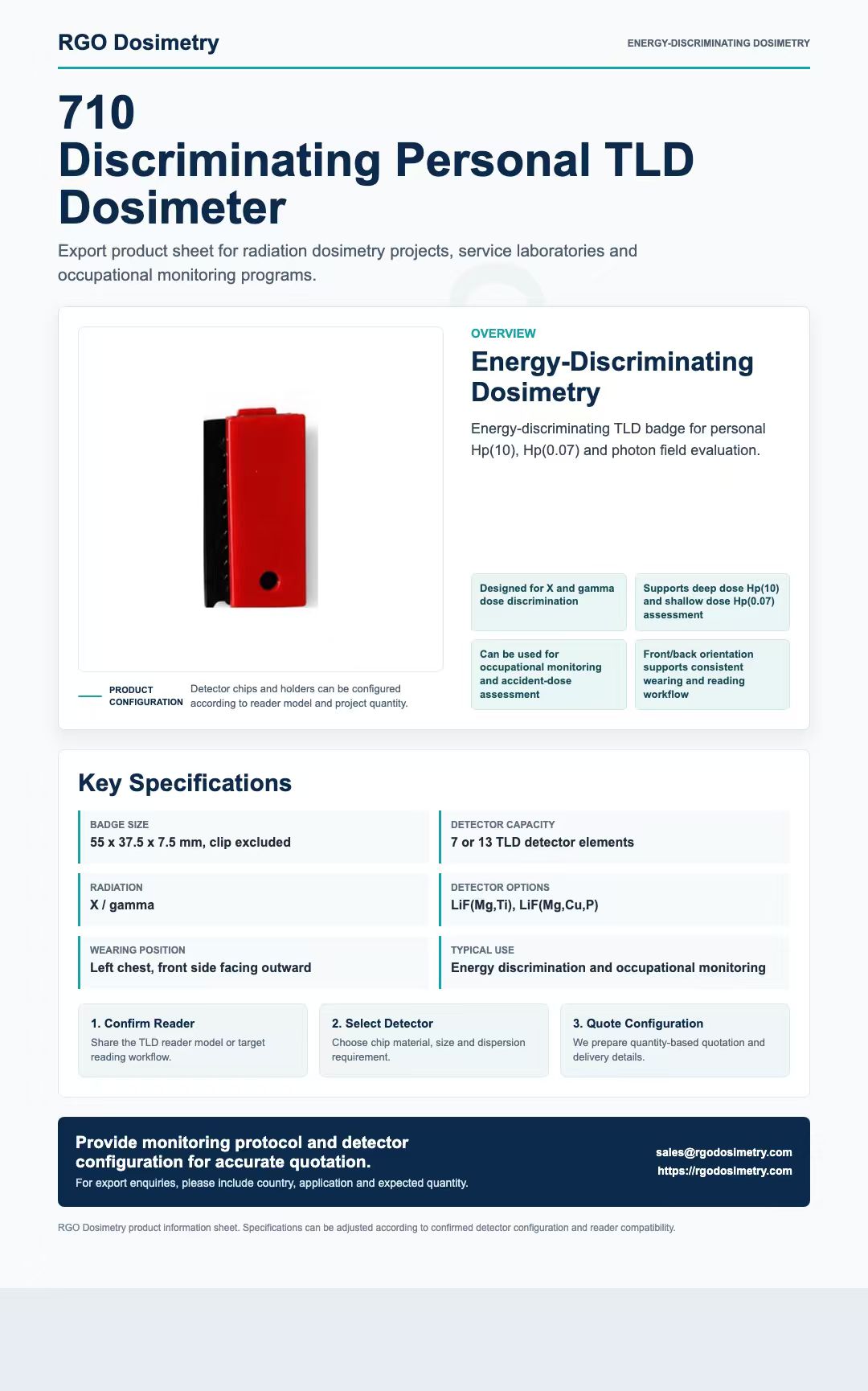

Product-sheet specifications
- Badge size: 55 x 37.5 x 7.5 mm, clip excluded
- Detector capacity: 7 or 13 TLD detector elements
- Radiation: X/gamma
- Detector options: LiF(Mg,Ti), LiF(Mg,Cu,P)
- Wearing position: left chest, front side facing outward
- Typical use: energy discrimination and occupational monitoring
Configuration notes
For this product type, detector count, front/back orientation, wearing position and readout workflow are part of the monitoring method. Do not treat the holder alone as the full specification; confirm the full protocol before final quotation.
Information needed for quotation
- Required monitoring quantities and reporting protocol
- 7-element or 13-element configuration requirement
- Detector material and chip dimensions
- Existing TLD reader model and software workflow
- Standards, certificates or acceptance criteria
- Quantity, delivery country and Incoterm
Related products and articles
- Personal Dosimeters and Holders
- GR-200A / GR-200 Series TLD Detector Chips
- What information should you provide before requesting a TLD quotation?
Request a quotation: email sales@rgodosimetry.com with monitoring protocol, element count, detector material, reader model, quantity and delivery country.
