This page follows the MacBook-made product-sheet set and is intended as a buyer navigation page. Final holder, badge and detector configuration must still be confirmed against the customer's reader model, detector format, monitoring protocol and reporting workflow.

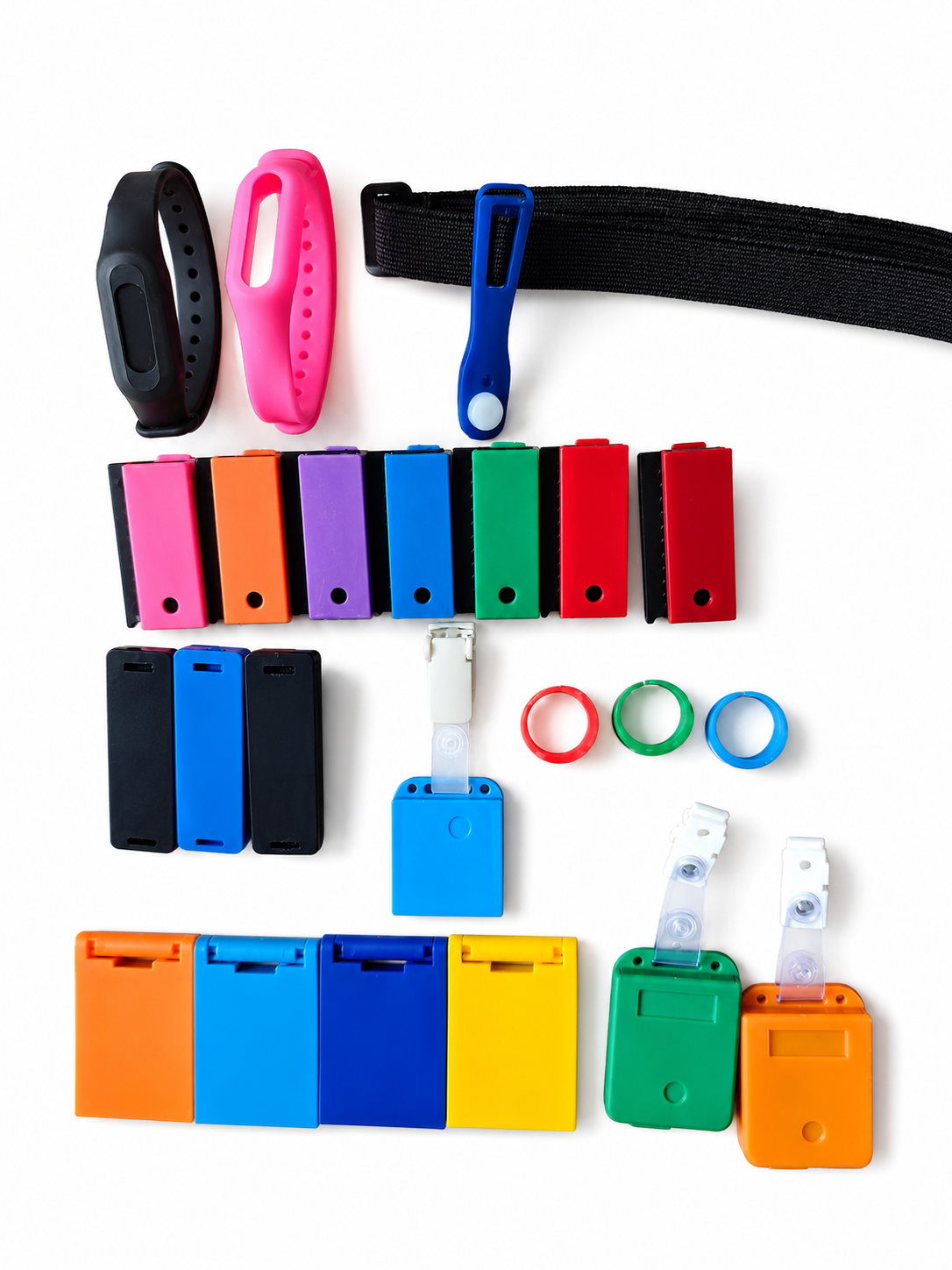

Product-sheet model overview
| Model | Product page | Monitoring use | Key configuration point |
|---|---|---|---|
| 600 | Personal TLD Dosimeter Holder | Routine whole-body occupational personal dosimetry | Holder size, chip format, element count and reader compatibility. |
| 710 | Discriminating Personal TLD Dosimeter | Energy discrimination and occupational monitoring for X/gamma workflows | 7 or 13 detector elements, wearing orientation and monitoring protocol. |
| IDB-III | Sealed Personal TLD Dosimeter Badge | Personal and environmental dosimetry in demanding environments | Sealed housing, detector format and environmental conditions. |
| 1600 | Wrist TLD Dosimeter | Extremity monitoring at wrist position | Wristband color, detector material and reader workflow. |
| 1700 | Eye Lens TLD Dosimeter | Occupational eye lens dose monitoring | Wearing accessory, detector material and monitoring protocol. |
| 1800 | Ring TLD Dosimeter | Finger dose and extremity monitoring | Ring color, detector chip and reader compatibility. |
| 2000 | Barcode TLD Dosimeter Holder | Large-batch personal dosimetry service workflows | Barcode format, ID numbering, slide card and software workflow. |
How to choose
- Use 600 for routine whole-body badge holder requirements when the reader and chip format are known.
- Use 710 when the program requires a defined energy-discriminating badge configuration.
- Use IDB-III when sealed housing or demanding environmental conditions matter.
- Use 1600, 1700 or 1800 when the monitored position is wrist, eye lens or finger.
- Use 2000 when barcode ID management and batch service workflow are part of the requirement.
Minimum information needed
- Target monitoring position: chest, wrist, finger, eye lens or barcode badge workflow
- Holder only or complete dosimeter with detector chips
- Detector material, chip dimensions and number of elements per dosimeter
- Existing TLD reader model and software workflow
- Color, clip, label, barcode or ID management requirement
- Quantity, certificates and delivery country
Technical caution: the product sheets are useful for selection and enquiry preparation, but they are not a final compatibility approval. Confirm detector structure and reader workflow before formal quotation.
Related pages
- GR-200A / GR-200 Series TLD Detector Chips
- TLD Reader Options
- What information should you provide before requesting a TLD quotation?
Request holder details: email sales@rgodosimetry.com with model, detector format, reader model, quantity, barcode or label needs and delivery country.
